Smooth Operation, Maintenance-Free, Flexible, Adjustable, Sturdy...



Surgiline 2000E Surgical Table is designed to accommodate different patient positions required for demanding surgical procedures, with an ultimate focus on patient and user safety. The table is constructed with stainless steel and high quality materials to provide durability and long operating life.

Surgical positions of Surgiline 2000E are adjusted by an electrohydraulic system. Surgiline 2000E Surgical Table has up/down, sliding, Trendelenburg/reverse Trendelenburg, right/left lateral, renal surgery, Trendelenburg and back section upward combination, and back section tabletop positions. Positions are adjusted with remote control, in a quite and nonvibrating manner at constant speed.

Surgiline 2000E Surgical Table is equipped with battery recharge system. Movements of the table are fed from battery circuit. Battery power of the table has a 30 minutes operating time in cases of mains failure providing approximately 30 complete position changes.

The tabletop consists of four sections: head, backrest, seat and leg, each with removable, easy to clean, anti-bacterial, and waterproof 80 mm mattress for patient comfort.

Easy to install optional radiographic tabletop kit* enables using Surgiline 2000E for X-ray procedures. Sliding motion of the tabletop enables Surgiline 2000E Surgical Table compatible for use with C-Arm radiological equipment.

The durable cast iron table base and electrohydraulic piston is covered with stainless steel. The “T” shape design of the Surgiline 2000E allows easy access to the tabletop in any position. Special brakes and anti-static casters allow ease of mobility. Stainless steel side rails accept a variety of available accessories.

Surgiline 2000E is a state-of-the-art product and with both quality and competitive pricing it is an excellent choice for todays demanding surgery theaters.

Tüm Ürünlerimizle İlgili Detaylı Bilgi İçin Muayenehane ve Ameliyathane Çözümleri Kataloğumuzu İndirin!

Ref: M2C 650 0 0



Teknik Özellikler

Yükseklik: 725 - 1055 mm

Yükseklik (Minder ile): 805 - 1135 mm

Minder kalınlığı: 80 mm

Masa üstü: 500 x 1880 mm

Masa tabanı: 370 x 830 mm

Baş bölümü: 500 x 240 mm

Sırt bölümü: 500 x 490 mm

Oturma bölümü: 500 x 510 mm

Ayak bölümü (Sağ): 235 x 555 mm

Ayak bölümü (Sol): 235 x 555 mm

Şebeke/jeneratör giriş voltajı: 100-240 V, 50/60 Hz

El kumandası voltajı: DC 5V

Motor girişleri: DC 24V, 10A

Akü tipi: 2 adet 12V, 7Ah’lik kuru tip, bakıma ihtiyaç duymayan

Akü şarj voltajı: DC 27.2V

Düşük şarj seviye ikazı: Sesli ikaz

Akü şarj süresi: 18 saat (tam şarj)

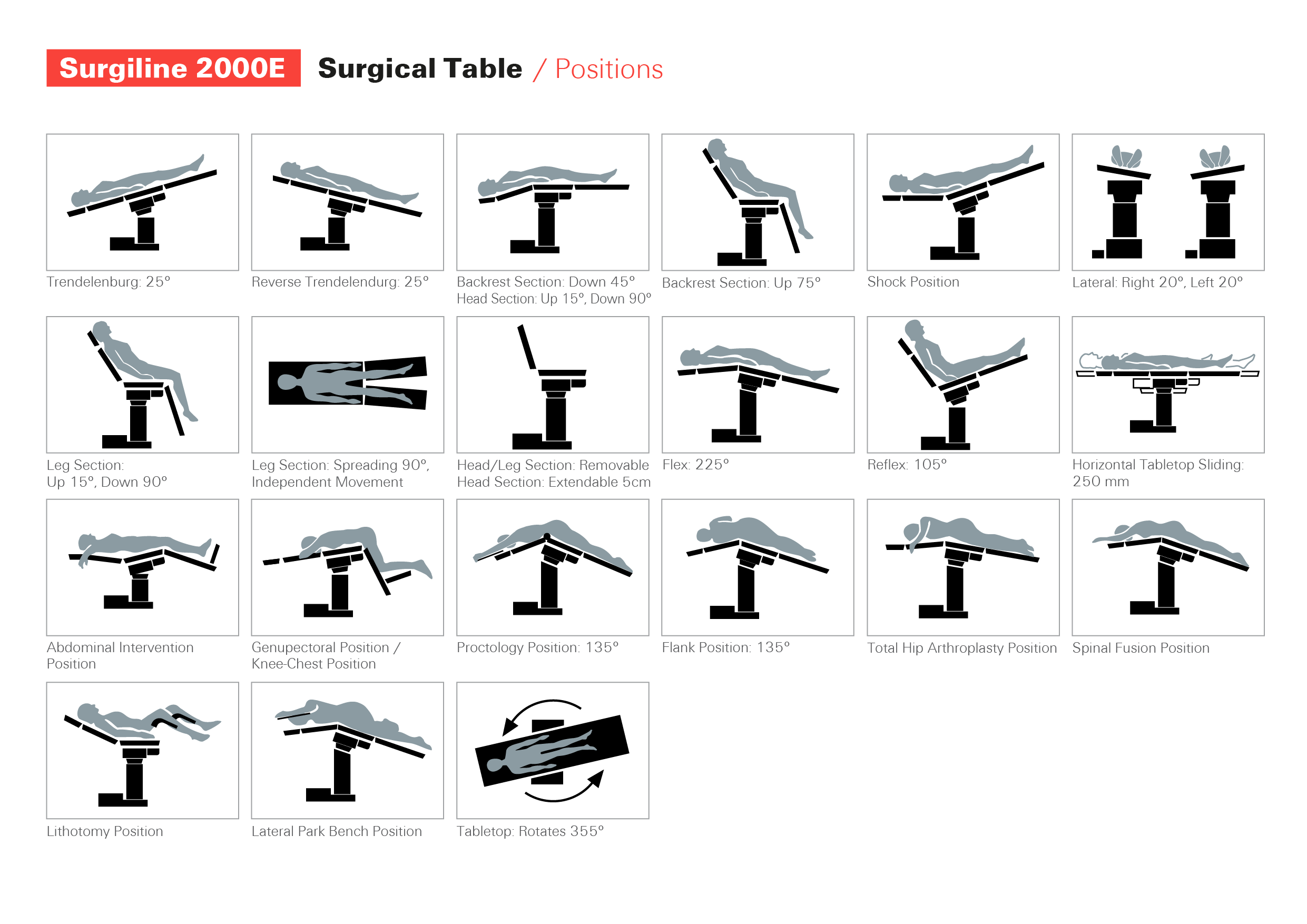

Pozisyonlar

Baş bölümü: 15° yukarı, 90°aşağı, sırt bölümünden 5 cm uzaklaşır, çıkarılabilir.

Sırt bölümü: 75° yukarı, 45° aşağı, 45° yukarı (Radyografik masa üstü seti ve minder ile)

Ayak bölümü: 15° yukarı, 90° aşağı, 90° yana açılabilir, çıkarılabilir, bağımsız hareket.

Lateral: 20° sağ, 20° sol

Trendelenburg: 25°

Ters-Trendelenburg: 25°

Böbrek cerrahisi: 135°

Refleks: 105°

Fleks: 225°

Masa üstü: Taban sabit 355° döner, 250 mm yatay hareket (sliding)



Standart Aksesuarlar

Anestezi çerçevesi (1 adet)

Serum askısı (1 adet)

Ameliyat masası kol destek

(2 adet)

Vücut kemer grubu (1 adet)



İsteğe Bağlı Aksesuarlar

Vücut destek

Omuz destek

Kol destek

Ayak destek

Bilek kemeri

Kol kemeri

Bacak kemeri

Diz destek

Diz bölümü

Baş bölümü - Yükselebilir

Litotomi bacak askısı

El/kol cerrahi tablası

Röntgen kaset sürücü

Atık toplama

Karbon fiber ayak uzatma

Artroskopik diz destek

Artroskopik omuz destek

U-tipi baş bölümü

Çivili başlık

Çivili başlık oturma pozisyonu

bağlantı parçası

Çivili başlık ve U-tipi baş bölümü için aksesuar sehpası

Spinal cerrahi çerçevesi

Kompakt laminat ayak uzatma

Litotomi bacak pozisyonlandırma botu

Obezite litotomi bacak pozisyonlandırma botu

Proktoloji parçası

Kompakt aksesuar sehpası

Ortopedik traksiyon



Ambalaj Bilgileri

Net ağırlık: 250 kg

Brüt ağırlık: 295 kg

Ambalaj ölçüleri: 1000 x 1680 x 1100 mm
